What is Nugget Viewer?

1. This is newly developed spot weld inspection tool with application of ultrasonic wave phenomenon.

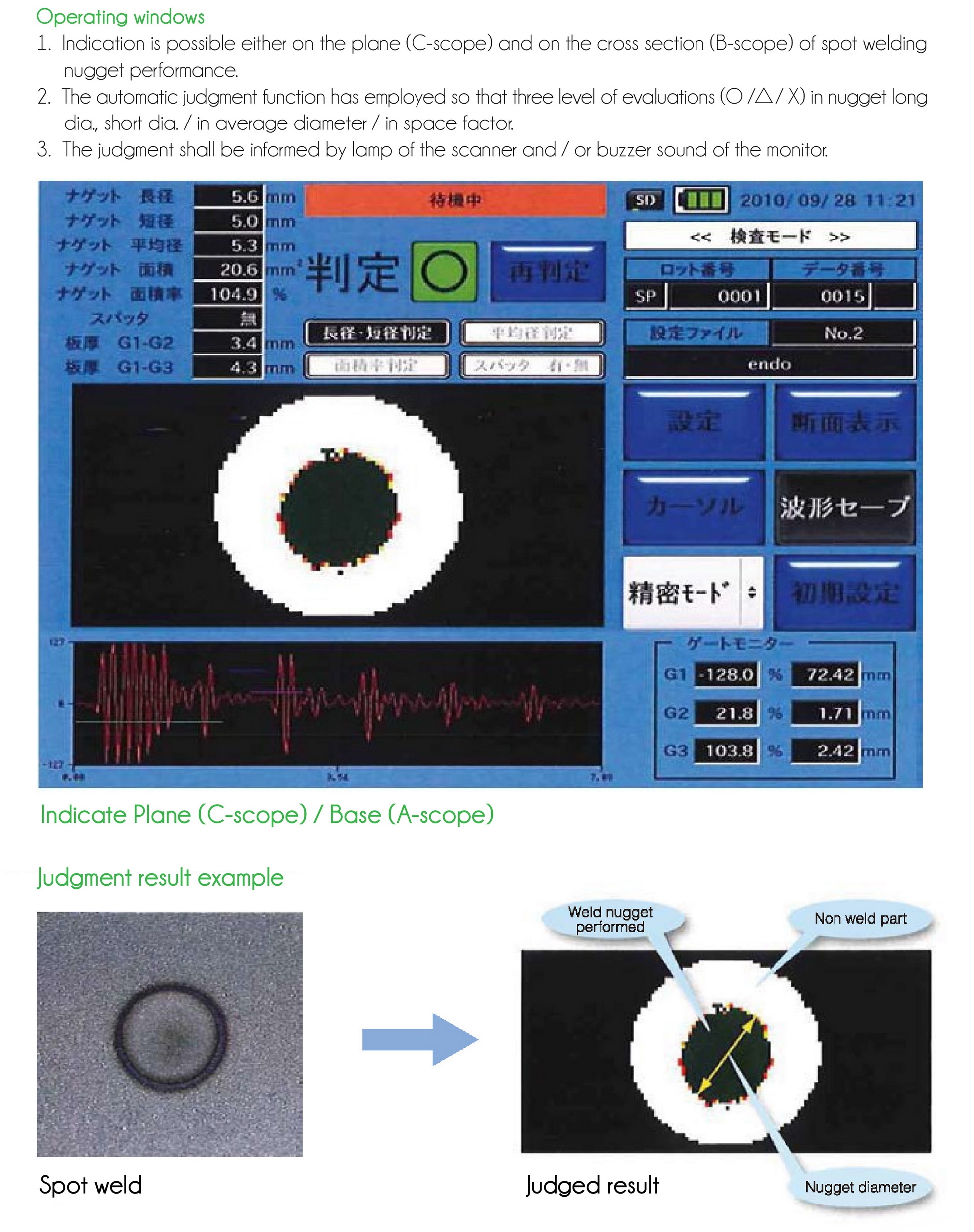

2. It simply indicates spot weld nugget on the display in flat image (C-scope image) and determines judgment
either of ideal weld nugget has performed or not.

3. Automatic measurement on weld nugget diameter and also on space factor can be made for the evaluation of
weld quality.
